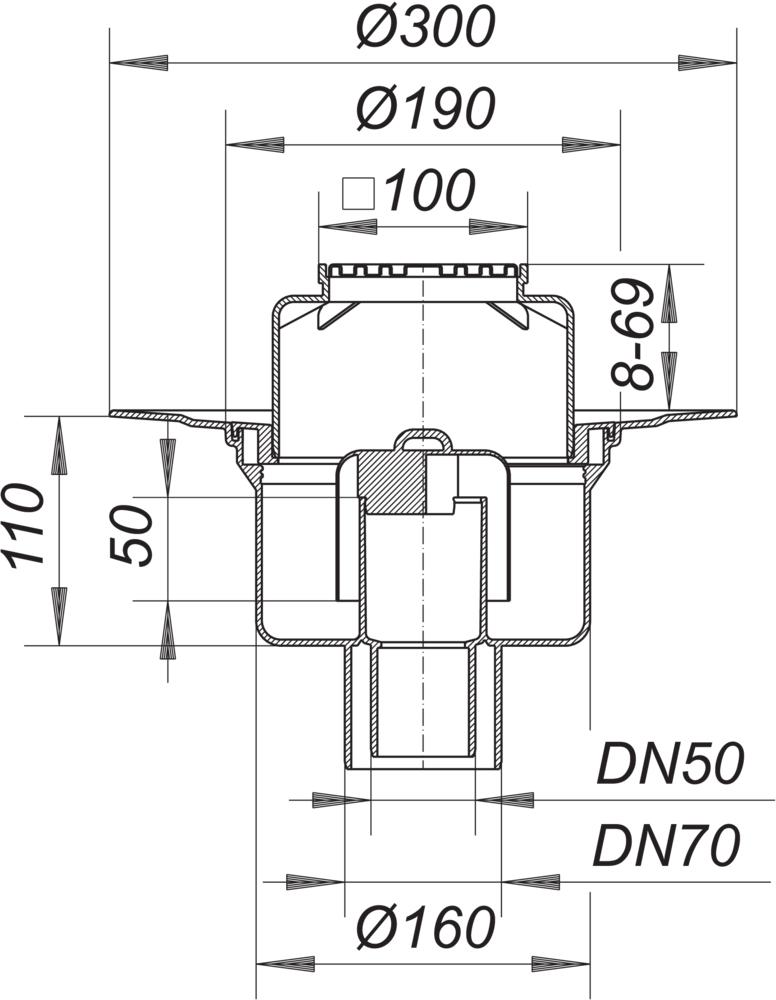

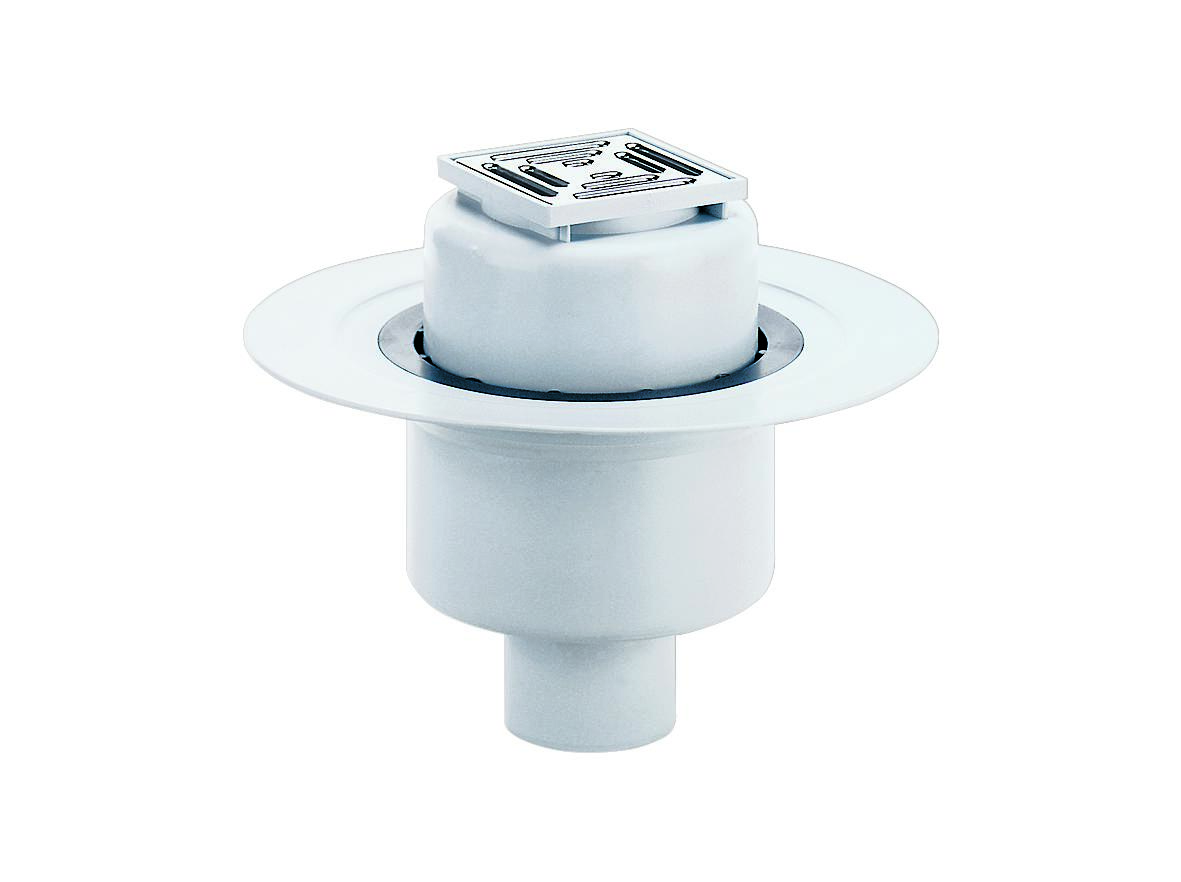

floor drain type 61 HT/E, DN 50/DN 70, 100 x 100 mm
conforming to DIN EN 1253
outlet DN 50/DN 70 vertical, for connection to plastic pipework
specification
– height adjustable grating E 15
– removable trap insert, 50 mm water seal (conforming to DIN EN 1253)
– temporary blanking plate
material
polypropylene
frame polypropylene, 100 x 100 mm, grate 304 stainless steel, class K 3 (300 kg)
DN 70 connects to BS4514 75 mm pipework with 880345 adaptor.
Fire protection system 1 (Part No. 515018) applicable.
